Data tables

What's a data table?

A data table is a bunch of rows and columns. For example, here's a data table about goats.

Data table

Each row is about one thing. The first row is data about a goat.

Row

The second row is data about a different goat.

Another row

Rows are also called records. Sometimes they're called cases. We'll stick with records, since that's a common term.

So, a data table is a list of records. Each record is about one thing.

Each column is usually called a field, or attribute. The first field is goat name.

Goat name

The second field is the goat's happiness level.

Another column

The third field is coolness level.

So, a record is data about one goat. A field is an attribute that all goats have.

Each field has a data type. Usually, every value in a field is the same data type. Here, every goat name is a string. The others are numbers.

Where you find data tables

Data tables are everywhere in IT. They're in Excel, as you've just seen. They're in CSV files:

  • "Sima",5,5
  • "Minnie",5,7
  • "Meg",6,9
  • "Shawana",8,7
  • "Shayla",8,10
  • "Steffanie",7,6
  • "Lon",8,9
  • "Trent",6,7
  • "Sherryl",4,7
  • "Ayesha",8,4
  • "Joel",9,5
  • "Marcellus",7,7
  • "Katy",5,8

In the CSV file, each row is a record. Each item is a field.

Data tables are in databases, like Access, SQL Server, or MySQL. For example, here's the same data from a MySQL database:

MySQL table

The data-table-records-fields thing is easy for people to work with, so they turn up a lot.

Data table processing pattern

There's a general pattern for processing data tables:

  • Grab the first row
  • Do something with it
  • Grab the next row
  • Do something with it
  • Keep going until you run out of rows

Here's a data table. It's different from the one above:

Data table

Data about four different goats. Three fields for each goat:

  • Name
  • Weight
  • Whether the goat likes Borderlands

So, the pattern is to start at the top, and process the first row.

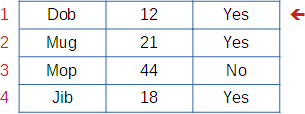

Start with row 1

Then the next.

Process row 2

Then the next.

Process row 3

Then the next.

Process row 4

Let's write in some record numbers, to make this easier to think about.

Record numbers

It's useful to have the idea of a current record. When you're processing this record...

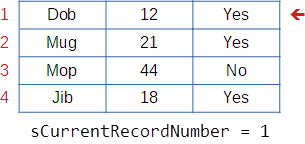

Processing record 1

... the current record is 1.

Imagine we made a variable called, say, sCurrentRecordNumber. It holds..., er, the current record number. It would start at one:

Start

When you're processing the next record...

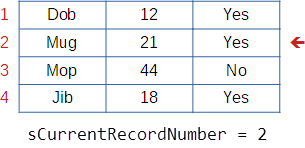

The next record

Then...

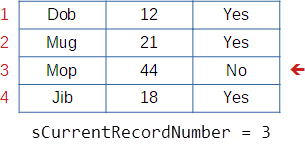

The next record

Then...

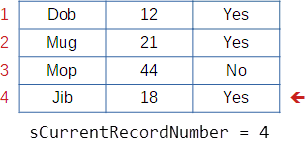

The next record

sCurrentRecordNumber points to the record being processed.

Loops

A loop is code that's executed again and again, usually with something changing each time.

Here's the data again:

Data table

Let's say that the second column is the goat's weight, in kilos. Suppose you've put the goats' weight into an array called asGoatWeight. We'll look at the deets later. For now, just know that:

  • asGoatWeight(1) is 12
  • asGoatWeight(2) is 21
  • asGoatWeight(3) is 44
  • asGoatWeight(4) is 18

We want to work out the total weight of all of the goats. Here's some code for that. You don't need to understand the deets, just get a general idea of what a loop is.

  1. sTotal = 0
  2. For sCurrentRecordNumber = 1 To 4
  3.   sTotal = sTotal + asGoatWeight(sCurrentRecordNumber)
  4. Next sCurrentRecordNumber
  5. MsgBox "Total goat weight: " & sTotal

The loop is from lines 2 to 4. Line 3 is the body of the loop.

Line 3 is run again and again. The code never changes as the program runs. But what line 3 does changes, each time line 3 runs. What line 3 does changes, because a variable in line 3 changes its value.

Here's what happens.

  • Set sCurrentRecordNumber to 1, and run line 3.
  • Set sCurrentRecordNumber to 2, and run line 3.
  • Set sCurrentRecordNumber to 3, and run line 3.
  • Set sCcurrentRecordNumber to 4, and run line 3.

In that list, let's take out "run line 3," and write in what line 3 is.

  • Set sCurrentRecordNumber to 1. Run sTotal = sTotal + asGoatWeight(sCurrentRecordNumber).
  • Set sCurrentRecordNumber to 2. Run sTotal = sTotal + asGoatWeight(sCurrentRecordNumber).
  • Set sCurrentRecordNumber to 3. Run sTotal = sTotal + asGoatWeight(sCurrentRecordNumber).
  • Set sCurrentRecordNumber to 4. Run sTotal = sTotal + asGoatWeight(sCurrentRecordNumber).

Now let's replace sCurrentRecordNumber with the value it has each time through the loop.

  • Set sCurrentRecordNumber to 1. Run sTotal = sTotal + asGoatWeight(1).
  • Set sCurrentRecordNumber to 2. Run sTotal = sTotal + asGoatWeight(2).
  • Set sCurrentRecordNumber to 3. Run sTotal = sTotal + asGoatWeight(3).
  • Set sCurrentRecordNumber to 4. Run sTotal = sTotal + asGoatWeight(4).

Here's the table again:

Data table

Let's plug in the weight values from the table.

  • Set sCurrentRecordNumber to 1. Run sTotal = sTotal + 12. sTotal is 0 + 12 -> 12.
  • Set sCurrentRecordNumber to 2. Run sTotal = sTotal + 21. sTotal is 12 + 21 -> 33.
  • Set sCurrentRecordNumber to 3. Run sTotal = sTotal + 44. sTotal is 33 + 44 -> 77.
  • Set sCurrentRecordNumber to 4. Run sTotal = sTotal + 18. sTotal is 77 + 18 -> 95.

This is called the accumulator pattern. sTotal accumulates, as the loop is run. More later.

Pattern

Accumulator

Loop over a data table. For each record, add a field to a total, count, or whatevs.

To summarize, we run this line again and again:

  • sTotal = sTotal + asGoatWeight(sCurrentRecordNumber)

The value of sCurrentRecordNumber changes each time. It starts with the first record number (that's 1), then the next, then the next, and so on. By the end, the line...

  • sTotal = sTotal + asGoatWeight(sCurrentRecordNumber)

... has been run for every record.

Ray
Ray

I get the general idea. But I don't know if I got it all.

That's OK. What's the general idea?

Ray
Ray

There's a table of records. The loop has some code that's run for each record. First record, second record, until you get to the end. Is that right?

Yes, that's exactly right. How does the code know which records it's working on, each time through the loop?

Ray
Ray

Well, there's a variable, called sCurrentRecordNumber. It starts out at 1, then is 2, then 3, and so on.

The code grabs whatever record sCurrentRecordNumber is pointing to. Record 1, record 2, and the rest.

Perfect! That's all you need to know at the moment.

Loops can take a while to understand. Up until now, your code has run from the top of your program, to the bottom. Now, we have some code that spins around and around, churning through the data.

Ranges and CSV files

You'll be learning how to process two data table sources:

  • Excel Ranges
  • CSV files

Ranges are only an Excel thing. However, many different programs use CSV files. CSV files can come from anywhere. From a database, a website, your pal Johanan in Bruges... the CSV format has been around for a long time, and is widely used.

You'll see that the patterns for working with Ranges and CSV files are very similar.

Up next

Let's get working on Ranges.
