Hey, Adela!

Adela

What's up?

Can you write a program for us?

Adela

Sure. What's the task?

Cthulhu has data on goat music sales, and wants you to analyze it. Here's some of the data in the worksheet Cthulhu gives you:

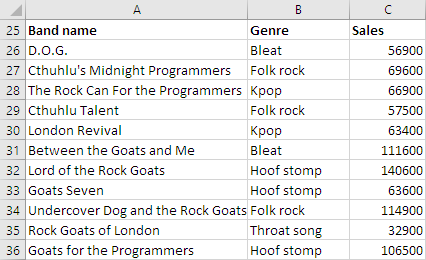

Data sample

The genres are:

Folk rock
Throat song
Chant
Kpop
Bleat
Hoof stomp

Some of the data could be invalid, since goat bands..., well, they are really into grass. Check that:

The band name is present.
The genre is present, and is one of the values above (but allow extra spaces, and upper/lowercase differences).
Sales are numeric, more than 1,000, and less than 1,000,000.

Here's what Cthulhu wants to know:

How many records are in the data set?
How many records are valid?
How many records are invalid?
What is the percentage of invalid records?

Cthulhu wants some stats about valid data only.

Total sales
Average sales per band
Band with the lowest sales: name, genre, and sales.
Band with the highest sales: name, genre, and sales.
Bleat music (Cthulhu's fave genre): bands, total sales, and average sales.

Ray

That's a lot of stuff to work out!

Adela

Hmm... it's not so bad. We've done everything on the list before. Just have to think it through, a bit at a time.

How are you going to start?

Adela

Let me check out data analysis tasks I've already done...

OK, here are some. This exercise was about processing ranges, using the accumulator pattern.

We learned a lot about validation. I can use code from there. Oh, right, the flag pattern. That'll make it easier. Easy is good.

I did this whole example on validating, and doing some stats.

There's filtering. we'll need that to break out the bleat music data.

We did the min/max code as well. Need that for this task, the highest and lowest sales.

OK, there's a lot of code I can copy.

Note

Copying from other programs you've written is a Good Thing. Copying other peoples' code is usually fine, too, if you have permission. You have permission to copy any of the code on this site, so go for it.

Ray

What about copying random code from, like, StackOverflow? Is that OK?

Stock Overflow is the best known site where programmers help each other. Copying the code is usually OK...

Georgina

You have but face!

What?

Georgina

You're about to say but!

Ha! Good one. Yes, there's a big but. Be careful copying code you don't understand. It might not do what you want, and you won't know that.

Remember that problem working out the minimum value in a data set? Georgina figured out we needed to initialize the minimum variable correctly, or it would stay at zero. What if you copied code that had that problem, but you didn't know it? ARGH!

Anyway, let's get back to Adela.

Note

Adela's reminding herself of similar work she's done before.

Adela

OK, I'm ready now.

I'll start with the big picture.

Hmm, I like to do this in VBE.

'Create Range object.
'Initialize.
'Get count of total records.
'For each record:
'Validate.
'Normalize genre (to make filtering easier).
'If data is OK:
'Accumulate overall totals and counts.
'Test for min and max sales.
'If genre is bleat: (filtering, use normalized genre).
'Add to bleat sales total and count.
'End loop.
'Compute averages.
'Output.

Note

Cool! Adela put in comments for the big picture.

Getting the overall structure right at the start makes a big difference. Because of all the practice in this course, Adela knew what to do.

Adela

OK, let's see...

I'll make the Range... Now get the number of records... Then set up the loop... And Dim the variables.

Dim rMusicDataRange As Range
'Total number of records in the data set.
Dim sCountRecordsInDataSet As Single
'Which record is being processed?
Dim sCurrentRecordNumber As Single
'Create Range object.
Set rMusicDataRange = Range(Cells(26, 1), Cells(26, 1).End(xlToRight).End(xlDown))
'Initialize.
'Get count of total records.
sCountRecordsInDataSet = rMusicDataRange.Rows.Count
'For each record:
For sCurrentRecordNumber = 1 To sCountRecordsInDataSet
'Validate.
'Normalize genre (to make filtering easier).
'If data is OK:
'Accumulate overall totals and counts.
'Test for min and max sales.
'If genre is bleat: (filtering, use normalized genre).
'Add to bleat sales total and count.
'End loop.
Next sCurrentRecordNumber
'Compute averages.
'Output.

Note

A few things to notice.

Adela put in the For and the Next, the outer layers of the data processing onion.
She gave the variables long names, so she knows what the variables are for. She also added comments as she Dimed the variables.

Adela

I'll work on the validation now. I'll use the flag pattern for that.

Start with the flag variable...

Oh! I forgot about counting invalid records.

'Flag for data validation.
Dim tIsRecordOk As String
...
'For each record:
For sCurrentRecordNumber = 1 To sCountRecordsInDataSet
'Validate.
tIsRecordOk = "yes"
'Normalize genre (to make filtering easier).
'If data is OK:
If bIsRecordOk Then
'Accumulate overall totals and counts.
'Test for min and max sales.
'If genre is bleat: (filtering, use normalized genre).
'Add to bleat sales total and count.
Else
'Add to invalid count.
End If
Next sCurrentRecordNumber

Adela

Let's see... Each time through the loop, I'm processing the current record. I'll put the current record's fields into variables. That'll make it easier to write the validation.

Const BAND_NAME_FIELD = 1
Const GENRE_FIELD = 2
Const SALES_FIELD = 3
...
'Data from row, before validation
Dim tBandNameIn As String
Dim tGenreIn As String
Dim tSalesIn As String
...
'For each record:
For sCurrentRecordNumber = 1 To sCountRecordsInDataSet
'Validate.
tIsRecordOk = "yes"
'Get data for the current record.
tBandNameIn = rMusicDataRange.Cells(sCurrentRecordNumber, BAND_NAME_FIELD)
tGenreIn = rMusicDataRange.Cells(sCurrentRecordNumber, GENRE_FIELD)
tSalesIn = rMusicDataRange.Cells(sCurrentRecordNumber, SALES_FIELD)

Note

Adela broke off one part of the task: getting the values of the current record. She could write the code without these variables, but using them makes things easier for her.

Easy is good.

Adela

The validation for the band is easy. It just has to be there. If it is, I'll put the band name into another variable, showing that the band name is validated.

'Data from row, before validation
Dim tBandNameIn As String
Dim tGenreIn As String
Dim tSalesIn As String
'Data from row, after validation.
Dim tBandName As String
Dim tGenre As String
Dim sSales As Single
...
'Loop over records.
For sCurrentRecordNumber = 1 To sCountRecordsInDataSet
'Validate.
tIsRecordOk = "yes"
'Get data for the current record.
tBandNameIn = rMusicDataRange.Cells(sCurrentRecordNumber, BAND_NAME_FIELD)
tGenreIn = rMusicDataRange.Cells(sCurrentRecordNumber, GENRE_FIELD)
tSalesIn = rMusicDataRange.Cells(sCurrentRecordNumber, SALES_FIELD)
'Check band name.
tBandNameIn = Trim(tBandNameIn)
If tBandNameIn = "" Then
tIsRecordOk = "no"
Else
tBandName = tBandNameIn
End If

Note

Adela made two sets of variables for the fields of the current record.

Fields before validation:

tBandNameIn
tGenreIn
tSalesIn

Fields after validation:

tBandName
tGenre
sSales

Georgina

That's a good idea, having two sets of variables. I like it!

And you trimmed the band name, just in case.

'Check band name.
tBandNameIn = Trim(tBandNameIn)

Ray

OK, but you have sales as string, then single.

'Data from row, before validation
...
Dim tSalesIn As String
'Data from row, after validation.
...
Dim sSales As Single

Why?

Adela

That's because there could be an error in the sales data. Someone might have typed something that's not a number. If you tried to put that value into a Single, the program would crash, with a type mismatch error.

Ray

Doh! Of course! I've done that a bunch of times in exercises.

More validation code.

'Check genre name.
tGenreIn = LCase(Trim(tGenreIn))
If _
tGenreIn <> "folk rock" And tGenreIn <> "throat song" _
And tGenreIn <> "chant" And tGenreIn <> "kpop" _
And tGenreIn <> "bleat" And tGenreIn <> "hoof stomp" Then
bIsRecordOk = False
Else
tGenre = tGenreIn
End If
'Check sales.
If Not IsNumeric(tSalesIn) Then
tIsRecordOk = "no"
Else
sSales = tSalesIn
If sSales < 1000 Or sSales > 1000000 Then
tIsRecordOk = "no"
End If
End If

Georgina

I like the way you laid out that long If, breaking up the lines. Easy to see the genres. Easy is good.

Ethan

There's the normalization of genre, too. Nice work!

Adela

Thanks!

Now I'll add in some counts, while I'm thinking of it.

Dim sCountValidRecords As Single
Dim sCountInvalidRecords As Single
...
'If data is OK
If tIsRecordOk = "yes" Then
'Current record has valid data.
sCountValidRecords = sCountValidRecords + 1
'Compute counts, totals, and stuff.
Else
'Something in the current record is invalid.
sCountInvalidRecords = sCountInvalidRecords + 1
End If

Ray

Do you need to initialize the counts, or did I get that wrong?

Adela

Oh, right! Thanks.

Dim sCountValidRecords As Single
Dim sCountInvalidRecords As Single
...
'Initialize.
sCountValidRecords = 0
sCountInvalidRecords = 0
...
'If data is OK
If tIsRecordOk = "yes" Then
'Current record has valid data.
sCountValidRecords = sCountValidRecords + 1
'Compute counts, totals, and stuff.
Else
'Something in the current record is invalid.
sCountInvalidRecords = sCountInvalidRecords + 1
End If

Adela

Total sales, too.

Dim sCountValidRecords As Single
Dim sCountInvalidRecords As Single
Dim sTotalSales As Single
...
'Initialize.
sCountValidRecords = 0
sCountInvalidRecords = 0
sTotalSales = 0
...
'If data is OK
If tIsRecordOk = "yes" Then
'Current record has valid data.
sCountValidRecords = sCountValidRecords + 1
'Compute counts, totals, and stuff.
sTotalSales = sTotalSales + sSales
Else
'Something in the current record is invalid.
sCountInvalidRecords = sCountInvalidRecords + 1
End If

Adela

OK, lowest and highest. Let me check the lesson on that... OK, I need some new variables, some Ifs, and initialization.

Dim sLowSales As Single
Dim tLowSalesBandName As String
Dim tLowSalesBandGenre As String
Dim sHighSales As Single
Dim tHighSalesBandName As String
Dim tHighSalesBandGenre As String
...
'Initialize.
sLowSales = 3.4028235E+38
sHighSales = -3.4028235E+38
...
'Loop over records.
For sCurrentRecordNumber = 1 To sCountRecordsInDataSet
If tIsRecordOk = "yes" Then
...
'Check for new lows and highs.
If sSales < sLowSales Then
sLowSales = sSales
tLowSalesBandName = tBandName
tLowSalesBandGenre = tGenre
End If
If sSales > sHighSales Then
sHighSales = sSales
tHighSalesBandName = tBandName
tHighSalesBandGenre = tGenre
End If
Else
'Something in the current record is invalid.
sCountInvalidRecords = sCountInvalidRecords + 1
End If
Next sCurrentRecordNumber

Adela

OK, now the filtering code for bands in the bleat genre.

'Bleat genre results.
Dim sCountBleaters As Single
Dim sTotalSalesBleaters As Single
Dim sAverageSalesBleaters As Single
...
'Initialize.
...
sCountBleaters = 0
sTotalSalesBleaters = 0
...
'For each record:.
For sCurrentRecordNumber = 1 To sCountRecordsInDataSet
If tIsRecordOk = "yes" Then
...
'Just the bleaters.
If tGenre = "bleat" Then
sCountBleaters = sCountBleaters + 1
sTotalSalesBleaters = sTotalSalesBleaters + sales
End If
Else
'Something in the current record is invalid.
sCountInvalidRecords = sCountInvalidRecords + 1
End If
Next sCurrentRecordNumber

Adela

Nice! That's most of it. Just some calculations, and output.

'Compute averages.
sAverageSales = sTotalSales / sCountValidRecords
sAverageSalesBleaters = sTotalSalesBleaters / sCountBleaters
'Compute percent invalid records.
sPercentInvalidRecords = sCountInvalidRecords / sCountRecordsInDataSet * 100
'Output.
Cells(4, 2) = sCountRecordsInDataSet
Cells(5, 2) = sCountValidRecords
Cells(6, 2) = sCountInvalidRecords
Cells(7, 2) = sPercentInvalidRecords
Cells(9, 2) = sTotalSales
Cells(10, 2) = sAverageSales
Cells(12, 3) = tLowSalesBandName
Cells(13, 3) = tLowSalesBandGenre
Cells(14, 3) = sLowSales
Cells(16, 3) = tHighSalesBandName
Cells(17, 3) = tHighSalesBandGenre
Cells(18, 3) = sHighSales
Cells(20, 3) = sCountBleaters
Cells(21, 3) = sTotalSalesBleaters
Cells(22, 3) = sAverageSalesBleaters

You can download Adela's solution

Up next

Now there are some final exercises for the course.

Attachments

goat-music.xlsm
